Termo series
Termo series

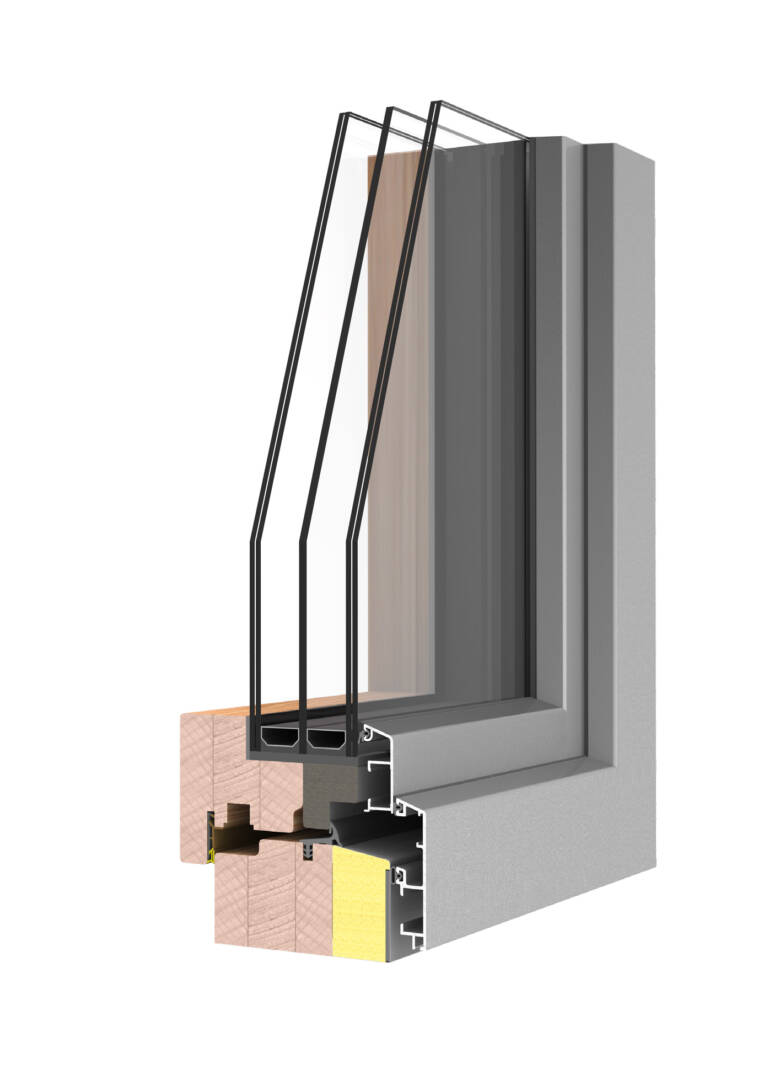

Thermo is a system with built-in XPS profiles, placed between the wood and aluminum. The XPS profiles used, have special additives, which allow to reach a coefficient of thermal conductivity of the profiles Uf=0.82 W/m²K.
The Thermo series has a passive window certificate from the Rosenheim International Institute.
The XPS profiles used have excellent strength qualities.
Profiles from the Thermo series allow a choice between the following coatings:
• ICONA – Synchronized, embossed coating resulting from the integration of decorative paper, melamine resin and non-woven fabric.
• Natura – Natural veneer coating, which we can finish with clear or colored varnish.
• Polyurethane paint.

Characteristics

Material - Wood and aluminum
Heat transfer - Uw = 0,7 W/m2 sq
Soundproofing - Rw = 43 Rw (db)
Double glazing - dw=54mm
Double glazing - dw=54mm
Anti-burglary - Yes
Wing width - bw = 111,5 mm
Case width - bw = 108,5 mm
Section height - hw = 106 mm

For more colors, we offer the possibility of making a color according to a sample or choosing a color according to the RAL catalog.
